Objective-C runtime, providing class introspection, protocols and resolution of selectors to the methods. More...

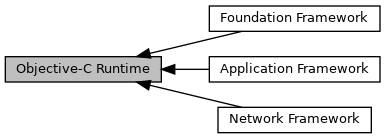

Collaboration diagram for Objective-C Runtime:

Modules
	Foundation Framework
	Foundational classes and types, including strings, numbers, dates, data and collections.

	Application Framework
	Application-related classes and types, including application lifecycle, event handling, display and frames, and hardware interfaces.

	Network Framework
	Network-related classes and types, including WiFi adapter management, connection management, data transmission and network protocols.

Data Structures
protocol	<NXConstantStringProtocol>
	Protocol for constant string objects. More...

class	NXConstantString
	A constant string class. More...

protocol	<ObjectProtocol>
	Protocol for objects. More...

class	Object
	The root class of all Objective-C classes. More...

class	Protocol
	Protocol class definition. More...

Macros
#define	objc_assert(condition)
	Asserts that a condition is true. More...

#define	nil ((id)0)
	A null object pointer.

#define	Nil ((Class)0)
	A null class pointer.

#define	YES true
	The Boolean value `true`.

#define	NO false
	The Boolean value `false`.

#define	OBJC_ROOT_CLASS
	A macro to declare a class as a root class. More...

#define	OBJC_UNUSED
	A macro to declare a method parameter is unused. More...

#define	OBJC_REQUIRES_NIL_TERMINATION
	A macro to indicate that a method requires a nil-terminated list of arguments. More...

Typedefs
typedef struct objc_object *	id
	A pointer to an instance of a class.

typedef const struct objc_selector *	SEL
	A pointer to a method selector.

typedef struct objc_class *	Class
	A pointer to a class definition.

typedef id(*	IMP) (id, SEL,...)
	A pointer to a method implementation.

typedef struct objc_method *	Method
	A pointer to a method.

typedef struct objc_protocol	objc_protocol_t
	An instance of a protocol.

typedef bool	BOOL
	A Boolean value.

Functions
void *	objc_malloc (size_t size)
	Allocate memory for use by the Objective-C runtime. More...

void	objc_free (void *ptr)
	Free memory previously allocated by objc_malloc(). More...

int	objc_sync_enter (id obj)
	Acquire a lock on the specified object for thread synchronization. More...

int	objc_sync_exit (id obj)
	Release a lock on the specified object. More...

Class	objc_lookupClass (const char *name)
	Looks up a class by name. More...

const char *	class_getName (Class cls)
	Returns the name of a class. More...

const char *	object_getClassName (id obj)
	Returns the name of an object's class. More...

Class	object_getClass (id object)
	Returns the class of an object. More...

void	object_setClass (id object, Class cls)
	Sets the class of an object. More...

BOOL	object_respondsToSelector (id object, SEL sel)
	Checks if an instance's class responds to a selector. More...

Class	object_getSuperclass (id obj)
	Returns the superclass of an object. More...

Class	class_getSuperclass (Class cls)
	Returns the superclass of a class. More...

BOOL	object_isKindOfClass (id object, Class cls)
	Checks if an instance class matches, or subclass of another class. More...

size_t	class_getInstanceSize (Class cls)
	Returns the size of an instance of a class. More...

BOOL	class_metaclassRespondsToSelector (Class cls, SEL sel)
	Checks if a class object responds to a selector. More...

BOOL	class_respondsToSelector (Class cls, SEL sel)
	Checks if an instance of a class responds to a selector. More...

const char *	sel_getName (SEL sel)
	Returns the name of a selector. More...

const char *	proto_getName (objc_protocol_t *protocol)
	Returns the name of a protocol. More...

BOOL	proto_conformsTo (objc_protocol_t protocol, objc_protocol_t otherProtocol)
	Checks if a protocol conforms to another protocol. More...

BOOL	class_conformsTo (Class cls, objc_protocol_t *otherProtocol)
	Checks if a class conforms to a protocol. More...

Detailed Description

Objective-C runtime, providing class introspection, protocols and resolution of selectors to the methods.

Macro Definition Documentation

◆ objc_assert

#define objc_assert ( condition )

Value:

if (!(condition)) {                                                          \
    sys_panicf("ASSERT FAIL: %s", #condition);                                 \
  }

Asserts that a condition is true.

Parameters

condition The condition to check.

If the DEBUG macro is defined, this macro will check the given condition. If the condition is false, it will call panicf with an assertion failure message, including the condition, file name, and line number. If DEBUG is not defined, this macro does nothing.

Examples:: examples/Application/blink/main.m, and examples/Application/timer/main.m.

Definition at line 29 of file assert.h.

◆ OBJC_REQUIRES_NIL_TERMINATION

#define OBJC_REQUIRES_NIL_TERMINATION

A macro to indicate that a method requires a nil-terminated list of arguments.

This macro is used in method declarations to specify that the method accepts a variable number of arguments that must be terminated with nil.

Definition at line 109 of file runtime.h.

◆ OBJC_ROOT_CLASS

#define OBJC_ROOT_CLASS

A macro to declare a class as a root class.

This macro uses the objc_root_class attribute if it is available, which allows a class to be defined without a superclass.

Definition at line 83 of file runtime.h.

◆ OBJC_UNUSED

#define OBJC_UNUSED

A macro to declare a method parameter is unused.

This macro uses the unused attribute if it is available, which allows a method parameter to be marked as unused.

Definition at line 97 of file runtime.h.

Function Documentation

◆ class_conformsTo()

BOOL class_conformsTo	(	Class	cls,
		objc_protocol_t *	otherProtocol
	)

Checks if a class conforms to a protocol.

Parameters

cls	The class to test for conformance.
otherProtocol	The protocol to check conformance against.

Returns: YES if methods of a cls conforms to otherProtocol, NO otherwise.

◆ class_getInstanceSize()

size_t class_getInstanceSize ( Class cls )

Returns the size of an instance of a class.

Parameters

cls	The class to inspect.

Returns: The size of an instance of the class in bytes, or 0 if the class is Nil.

◆ class_getName()

const char* class_getName ( Class cls )

Returns the name of a class.

Parameters

cls	The class to inspect.

Returns: A C-string containing the name of the class, or NULL if cls is Nil.

◆ class_getSuperclass()

Class class_getSuperclass ( Class cls )

Returns the superclass of a class.

Parameters

cls	The class to inspect.

Returns: The superclass of the class, or Nil if it is a root class.

◆ class_metaclassRespondsToSelector()

BOOL class_metaclassRespondsToSelector	(	Class	cls,
		SEL	sel
	)

Checks if a class object responds to a selector.

Parameters

cls	The class to inspect.
sel	The selector to check.

Returns: YES if the class responds to the selector, NO otherwise.

◆ class_respondsToSelector()

BOOL class_respondsToSelector	(	Class	cls,
		SEL	sel
	)

Checks if an instance of a class responds to a selector.

Parameters

cls	The class to inspect.
sel	The selector to check.

Returns: YES if instances of the class respond to the selector, NO otherwise.

◆ objc_free()

void objc_free ( void * ptr )

Free memory previously allocated by objc_malloc().

Parameters

ptr	A pointer to the memory block to be deallocated.

◆ objc_lookupClass()

Class objc_lookupClass ( const char * name )

Looks up a class by name.

Parameters

name	The name of the class to look up.

Returns: The class object, or Nil if the class is not found.

◆ objc_malloc()

void* objc_malloc ( size_t size )

Allocate memory for use by the Objective-C runtime.

Parameters

size	The number of bytes to allocate.

Returns: A pointer to the allocated memory block, or NULL if allocation fails.

◆ objc_sync_enter()

int objc_sync_enter ( id obj )

Acquire a lock on the specified object for thread synchronization.

Parameters

obj	The object to lock. Must not be nil.

Returns: 0 on success, or a non-zero error code on failure.

◆ objc_sync_exit()

int objc_sync_exit ( id obj )

Release a lock on the specified object.

Parameters

obj	The object to unlock. Must be the same object passed to objc_sync_enter().

Returns: 0 on success, or a non-zero error code on failure.

◆ object_getClass()

Class object_getClass ( id object )

Returns the class of an object.

Parameters

object The object to inspect.

Returns: The class of the object, or Nil if the object is nil.

◆ object_getClassName()

const char* object_getClassName ( id obj )

Returns the name of an object's class.

Parameters

obj	The object to inspect.

Returns: A C-string containing the name of the object's class, or NULL if obj is nil.

◆ object_getSuperclass()

Class object_getSuperclass ( id obj )

Returns the superclass of an object.

Parameters

obj	The object to inspect.

Returns: The superclass of the object, or Nil if it is a root class.

◆ object_isKindOfClass()

BOOL object_isKindOfClass	(	id	object,
		Class	cls
	)

Checks if an instance class matches, or subclass of another class.

Parameters

object	The object to inspect.
cls	The class to compare against.

Returns: YES if object class matches or is a subclass of cls, NO otherwise.

◆ object_respondsToSelector()

BOOL object_respondsToSelector	(	id	object,
		SEL	sel
	)

Checks if an instance's class responds to a selector.

Parameters

object	The object to inspect.
sel	The selector to check.

Returns: YES if instances of the class respond to the selector, NO otherwise.

◆ object_setClass()

void object_setClass	(	id	object,
		Class	cls
	)

Sets the class of an object.

Parameters

object	The object to modify.
cls	The new class for the object.

◆ proto_conformsTo()

BOOL proto_conformsTo	(	objc_protocol_t *	protocol,
		objc_protocol_t *	otherProtocol
	)

Checks if a protocol conforms to another protocol.

Parameters

protocol	The protocol to test for conformance.
otherProtocol	The protocol to check conformance against.

Returns: YES if protocol conforms to otherProtocol, NO otherwise.

◆ proto_getName()

const char* proto_getName ( objc_protocol_t * protocol )

Returns the name of a protocol.

Parameters

protocol The protocol to inspect.

Returns: A C-string containing the name of the protocol, or NULL if protocol is NULL.

◆ sel_getName()

const char* sel_getName ( SEL sel )

Returns the name of a selector.

Parameters

sel	The selector to inspect.

Returns: A C-string representing the selector's name.
