Wi-Fi management interface. More...
#include <stdbool.h>#include <stdint.h>
Include dependency graph for wifi.h:

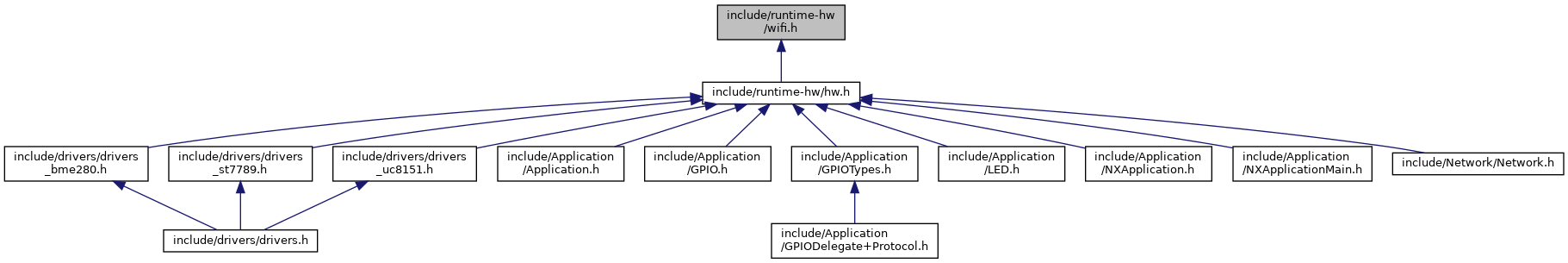

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Data Structures | |
| struct | hw_wifi_network_t |
| Describes a discovered Wi‑Fi network (scan result). More... | |
Macros | |
| #define | HW_WIFI_SSID_MAX_LENGTH 32 |
Typedefs | |
| typedef struct hw_wifi_t | hw_wifi_t |
| typedef void(* | hw_wifi_callback_t) (hw_wifi_t *wifi, hw_wifi_event_t event, const hw_wifi_network_t *network, void *user_data) |
| Callback invoked for Wi‑Fi operation notifications. More... | |
Enumerations | |
| enum | hw_wifi_auth_t { hw_wifi_auth_open = (1 << 0), hw_wifi_auth_wep = (1 << 1), hw_wifi_auth_wpa_tkip = (1 << 2), hw_wifi_auth_wpa_aes = (1 << 3), hw_wifi_auth_wpa2_tkip = (1 << 4), hw_wifi_auth_wpa2_aes = (1 << 5), hw_wifi_auth_wpa3_sae = (1 << 6), hw_wifi_auth_enterprise = (1 << 7) } |
| Authentication and cipher modes for Wi‑Fi networks. More... | |
| enum | hw_wifi_event_t { hw_wifi_event_scan = (1 << 0), hw_wifi_event_joining = (1 << 1), hw_wifi_event_connected = (1 << 2), hw_wifi_event_disconnected = (1 << 3), hw_wifi_event_badauth, hw_wifi_event_notfound = (1 << 5), hw_wifi_event_error = (1 << 6) } |
| Callback events. More... | |
Functions | |
| hw_wifi_t * | hw_wifi_init (const char *country_code, hw_wifi_callback_t callback, void *user_data) |
| Initialize Wi-Fi management. More... | |
| bool | hw_wifi_valid (hw_wifi_t *wifi) |
| Determine if the Wi-Fi handle is initialized and usable. More... | |
| void | hw_wifi_finalize (hw_wifi_t *wifi) |
| Finalize and release any resources. More... | |
| bool | hw_wifi_scan (hw_wifi_t *wifi) |
| Begin an asynchronous scan for nearby Wi‑Fi networks. More... | |
| bool | hw_wifi_connect (hw_wifi_t *wifi, const hw_wifi_network_t *network, const char *password) |
| Begin an asynchronous connection to a Wi‑Fi network. More... | |
| bool | hw_wifi_disconnect (hw_wifi_t *wifi) |
| Disconnect from a previously-connected Wi‑Fi network. More... | |
Detailed Description
Wi-Fi management interface.
Definition in file wifi.h.
Typedef Documentation
◆ hw_wifi_callback_t
| typedef void(* hw_wifi_callback_t) (hw_wifi_t *wifi, hw_wifi_event_t event, const hw_wifi_network_t *network, void *user_data) |
Callback invoked for Wi‑Fi operation notifications.
- Parameters
-
wifi The Wi‑Fi handle associated with the operation. event The event type (see hw_wifi_event_t). network When event is hw_wifi_event_scan, this contains a pointer to the current scan result, or NULL to indicate the scan operation has completed. user_data Opaque user pointer supplied when the operation started.
This callback is used when connecting or disconnecting from a network, and when scanning for networks.
