ADC (Analog-to-Digital Converter) interface. More...
Include dependency graph for adc.h:

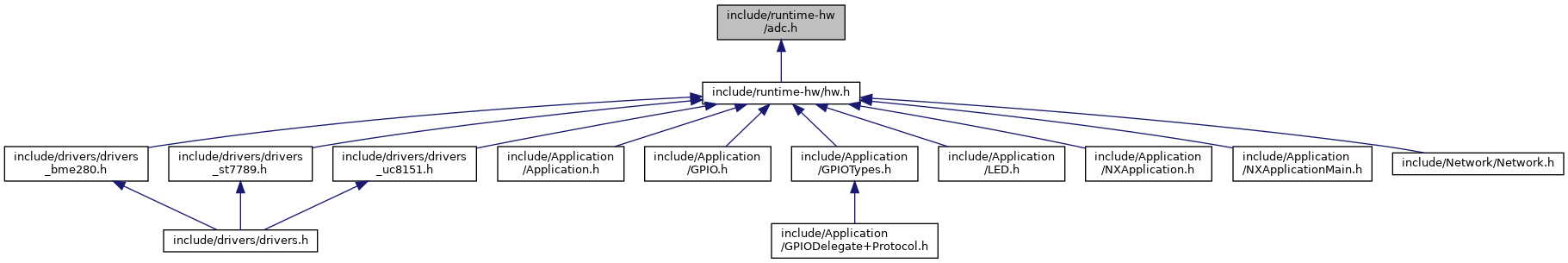

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Data Structures | |
| struct | hw_adc_t |
| ADC channel. More... | |
Typedefs | |
| typedef struct hw_adc_t | hw_adc_t |
| ADC channel. | |
Functions | |
| uint8_t | hw_adc_count (void) |
| Get the total number of available ADC channels. More... | |
| hw_adc_t | hw_adc_init_pin (uint8_t pin) |
| Initialize an ADC interface for a specific pin. More... | |
| hw_adc_t | hw_adc_init_temperature () |
| Initialize an ADC interface on which the temperature sensor is connected. More... | |
| void | hw_adc_finalize (hw_adc_t *adc) |
| Finalize and release an ADC interface. More... | |
| uint8_t | hw_adc_gpio_channel (uint8_t gpio) |
| Get the ADC channel number for a specific GPIO pin. More... | |
| static bool | hw_adc_valid (hw_adc_t *adc) |
| Check if an ADC handle is valid and usable. More... | |
| uint16_t | hw_adc_read (hw_adc_t *adc) |
| Read the current value from an ADC channel. More... | |
| float | hw_adc_read_voltage (hw_adc_t *adc) |
| Read the current value from an ADC channel as a voltage. More... | |
| float | hw_adc_read_temperature (hw_adc_t *adc) |
| Read the current value from an ADC channel as a temperature. More... | |
Detailed Description
ADC (Analog-to-Digital Converter) interface.
Definition in file adc.h.
